Led Strips Room

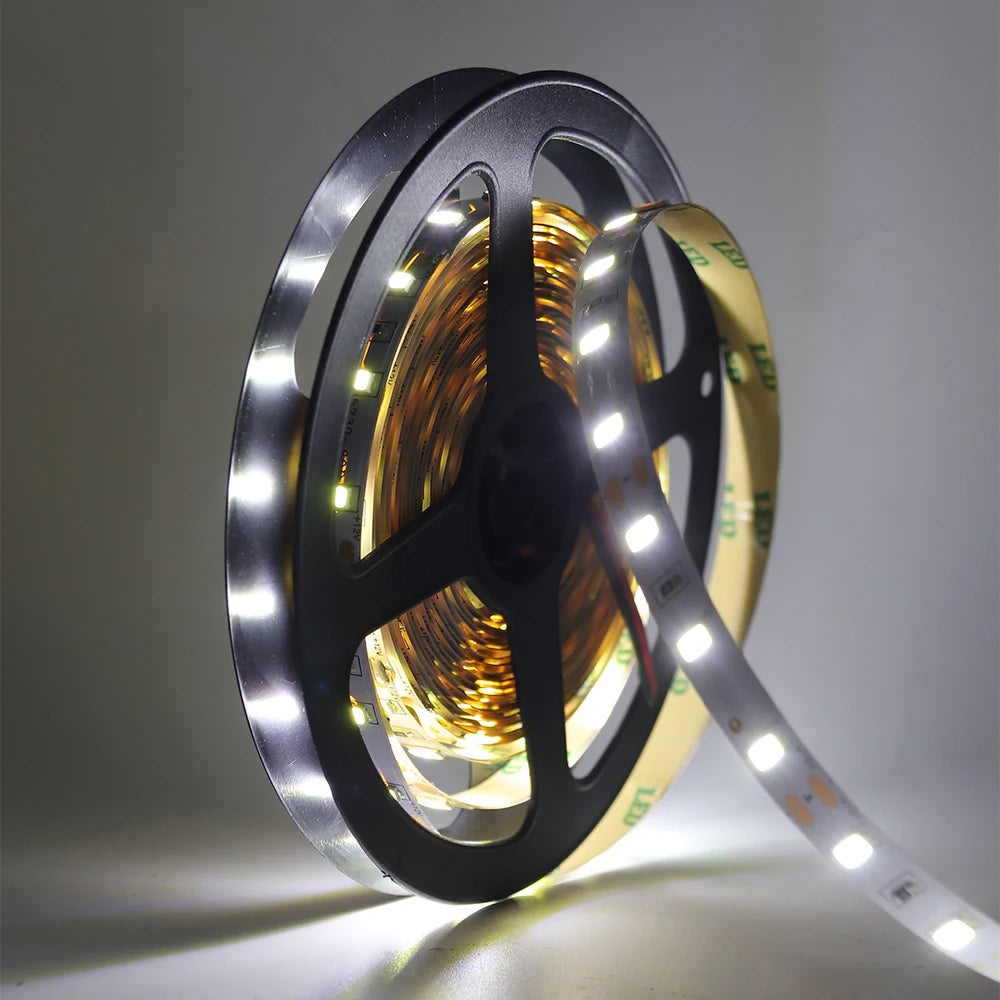

12V 5M LED Strip Light 5054 5050 2835 RGB SMD 120led 60LED Tape

12V 5M LED Strip Light 5054 5050 2835 RGB SMD 120led 60LED Tape

$45.99 USD
$79.99 USD $45.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

12V 5M LED Strip Light 5054 5050 2835 RGB SMD 120led 60LED 240LED 5630 Waterproof Flexible LED Tape for Home Decoration 9 Colors



Average Life (hrs): 60000



Certification: FCC,ROHS,UL,EMC,LVD,ce

Choice: yes

Color Temp(K): 1800K-9000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 60/120/240 LEDs/m

Led Strip: 12V Strip

Luminous Flux: <60

Model Number: 5054 LED Strip Light

Nominal Voltage: 12V

Power Consumption (W/m): 4-12W/m

Power Generation: Always On

Power Source: DC

Specifications (light beads / m): Other

Strip type: SMD

Style: 12V Led Light

Type: SMD LED

Voltage: 12 V

Waterproof: Yes

semi_Choice: yes





dianxiaobao_1


Specification:
LED Type:5054 SMD/5050 SMD/2835 SMD/5630 SMD
LED Strip Specifications: 5054--120LEDs/m,5054--60LEDs/m,5050--120LEDs/m,5050--60LEDs/m,2835--240LEDs/m,2835--120LEDs/m, 2835--60LEDs/m,  5630--120LEDs/m,5630--60LEDs/m
LED Quantity : 5054--600LEDs/5m,  5054--300LEDs/5m, 5050--600LEDs/5m, 5050--300LEDs/5m, 2835--1200LEDs/5m, 2835--600LEDs/5m, 2835-300LEDs/5m, 5630--600LEDs/5m, 5630--300LEDs/5m
Color: Warm White / Cold White/Natural White/red/green/blue/pink/ice blue/RGB
Working Input Voltage: DC12V
Lumen: 24-26LM/LED

Protection grade:
IP21: Non-waterproof (Adhesive tape on the back)
IP65: Resin Waterproof (Adhesive tape on the back)
IP67: Tube Waterproof (No adhesive tape on the back)

PCB Color: White
Panel width: 8-10mm
Is Dimmable: Yes(dimmer switch required,but not included)
Is Trimmable: Yes(cuttable every three LEDs)
Drive Mode: Contant Voltage
Beam Angle:120
Viewing Angle: adjustable by mounting position
Working Tempreture:-20 to 50

Features:
1. Super bright 5054 SMD topLED, high intensity and reliability.
2. Continuous length, packed with 5 meter.
3. Long life span 60,000+ hours
4. Flexible ribbon for curving around bends
5. Low power consumption
6. Completely smooth and even light spread, solving the uneven luminous problem
7. Ultra-bright but running at low temperature
* Double-panel design, effectively extending the life of LED Strip

*It re-soldered by each 0.5m


Data:
5054 60LEDs/M:
PCB width 10mm,
6-8W/m,

color temperature: warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 3A 36W" power supply

5054 120LEDs/M:
PCB width 10mm,
10-12W/m,

color temperature: warm white 2700-3500K, cold white 5500-7000K,

powered by "12V 5A 60W" power supply

5050 60LEDs/M:
PCB width 10mm,
5-6W/m, 6-8Lm/LED,

color temperature: warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 3A 36W" power supply

5050 120LEDs/M:
PCB width 10mm,
8-10W/m, 12-14Lm/LED,

color temperature: warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 5A 60W" power supply

2835 60LEDs/M:
PCB width 8mm,
3-4W/m, 6-8Lm/LED,

color temperature: warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 3A 36W" power supply

2835 120LEDs/M:
PCB width 8mm,
6-8W/m, 8-9Lm/LED,

color temperature: warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 5A 60W" power supply

2835 240LEDs/M:
PCB About 10mm,
10-12W/m, 12-14Lm/LED,

Color temperature: Warm white 2700-3500K, cold white 7500-9000K,

powered by "12V 5A 60W" power supply

5630 60LEDs/M:
PCB width 10mm, 8-9W/m,

Color temperature: Warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 3A 36W" power supply

5630 120LEDs/M:
PCB width 10mm, 8-10W/m ,
18-20LM/LED,

Color temperature: Warm white 2700-3500K, cold white 6000-6500K,

powered by "12V 5A 60W" power supply


Applications:
light up colorful home life ,DIY household lights for hallways, stairs, trails ,windows
Light up colorful life hotels decoration use, Theaters, clubs, shopping malls, festivals and performances
Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency
Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting
Applicable for automobile & Airplane model decoration, contour lighting or border

Package included :
1 x 5m led strip (power suupply is not included)

2251832623526022-16157381427525




5054  DC12V  120LEDs/m ⇊





















5054  DC12V  60LEDs/m⇊












5050  DC12V  120LEDs/m⇊






5050  DC12V  60LEDs/m⇊








2835  DC12V  240LEDs/m⇊





2835  DC12V  120LEDs/m⇊










2835  DC12V  60LEDs/m⇊











5630  DC12V  120LEDs/m⇊









5630DC12V60LEDs/m⇊

dianxiaobao_3



dianxiaobao_4
