DC12V/24V RGBW COB LED Strip Light 8mm Ultra-Narrow

DC12V/24V RGBW COB LED Strip Light 8mm Ultra-Narrow 768Leds/m High Density FOB RGBWW Lights RA90 Linear Dimmable 16W 12V/24V

Average Life (hrs): More than 50000 Hours

Brand Name: TNALANT

Certification: CCC,ce,CQC,FCC

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 768Leds/m

Luminous Flux: 249-2000

Model Number: COB RGBW

Nominal Voltage: 12V/24V

Occasion: LIVING ROOM

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 768Leds/m

Strip type: Flat 3-wire

Voltage: 12V/24V

Waterproof: No

DC12V/24V RGBW COB LED Strip Light 8mm Ultra-Narrow 768Leds/m High Density FOB RGBWW Lights RA90 Linear Dimmable 16W 12V/24V

Features:
Using mini 0402 LED as light source, and glue on surface to make the lights more evenly and uniform.
Up to 768 LEDs each meter.

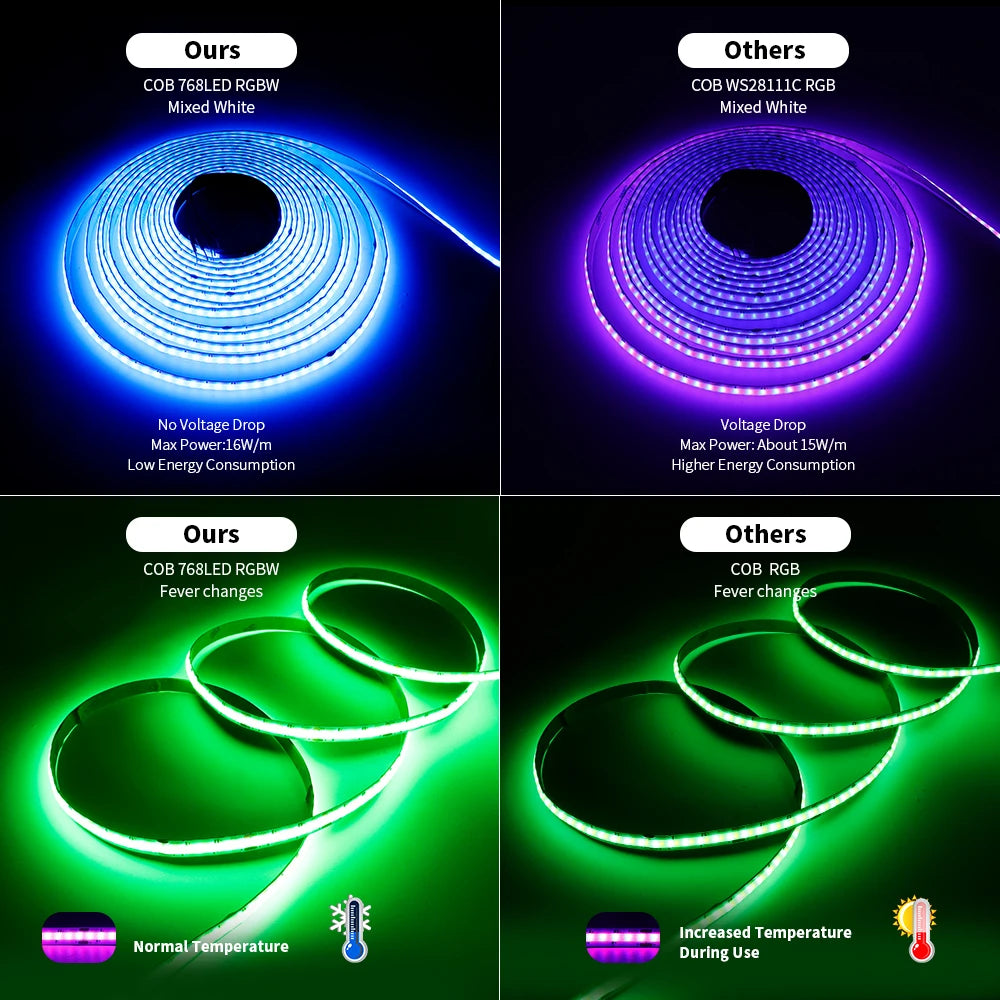

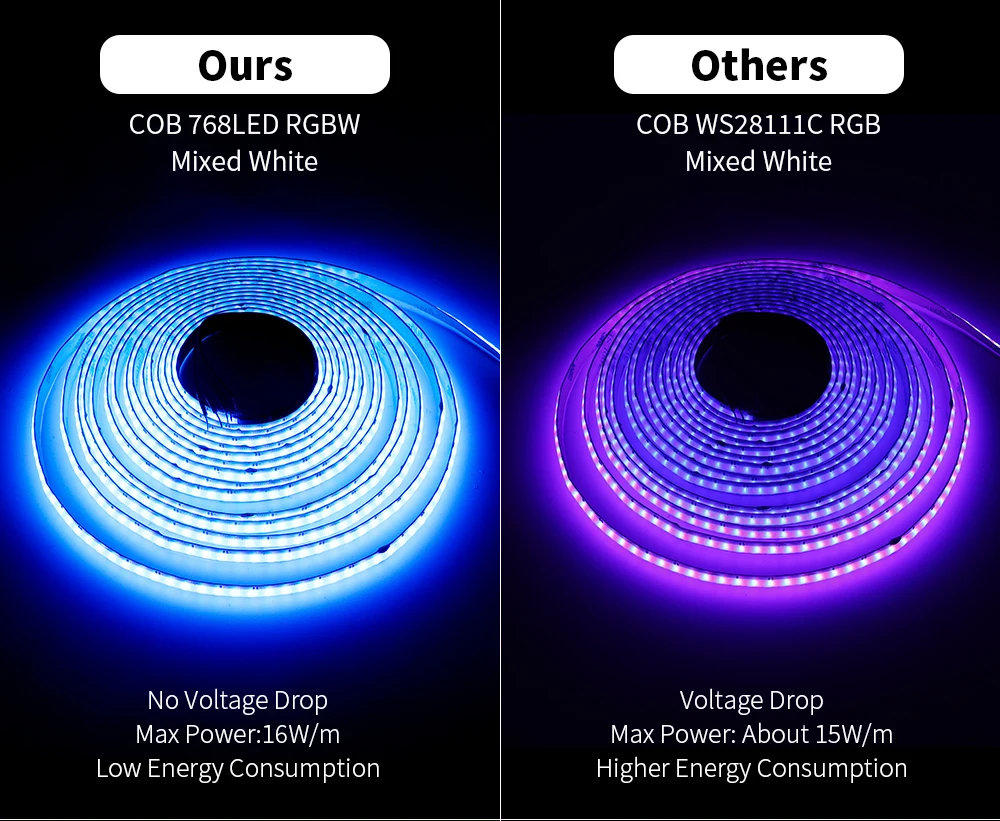

Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the RGBW controllers in the markets.
Applications, Residential lighting, decorative lighting.

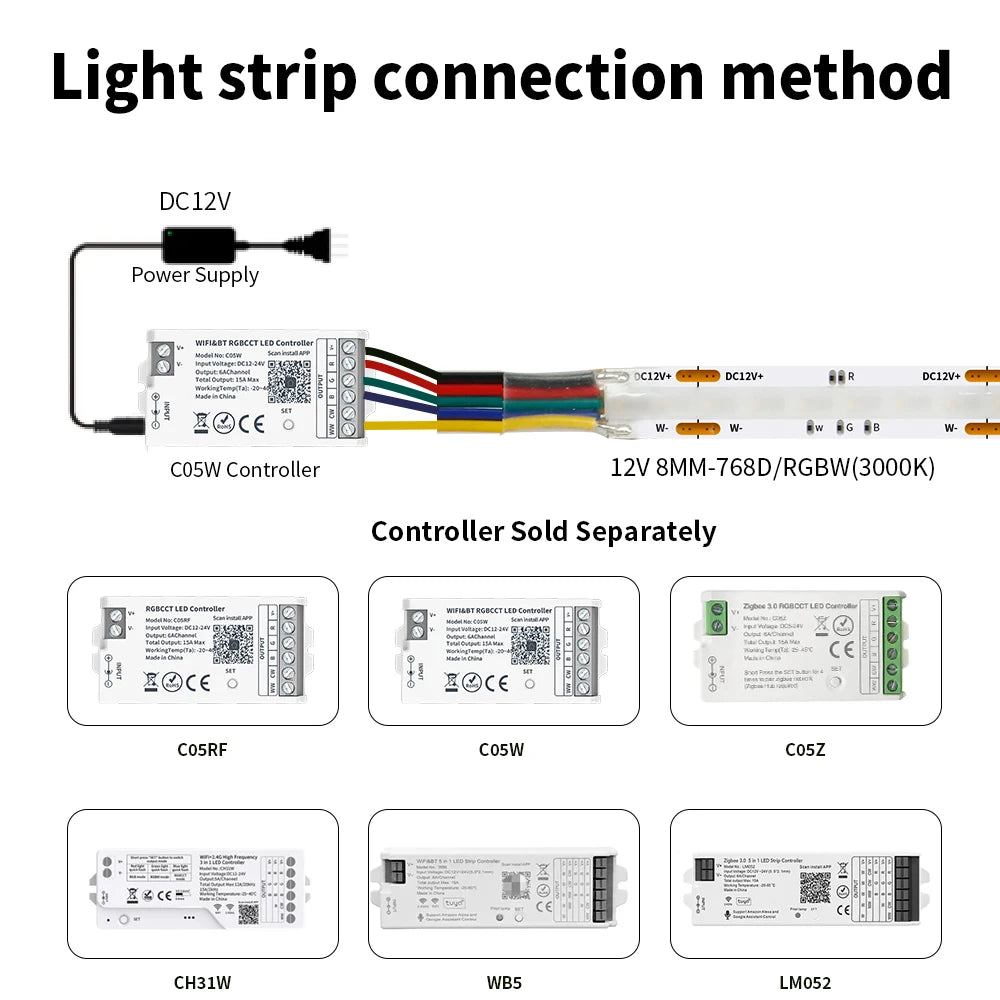

This LED lights need work with RGBW controller.

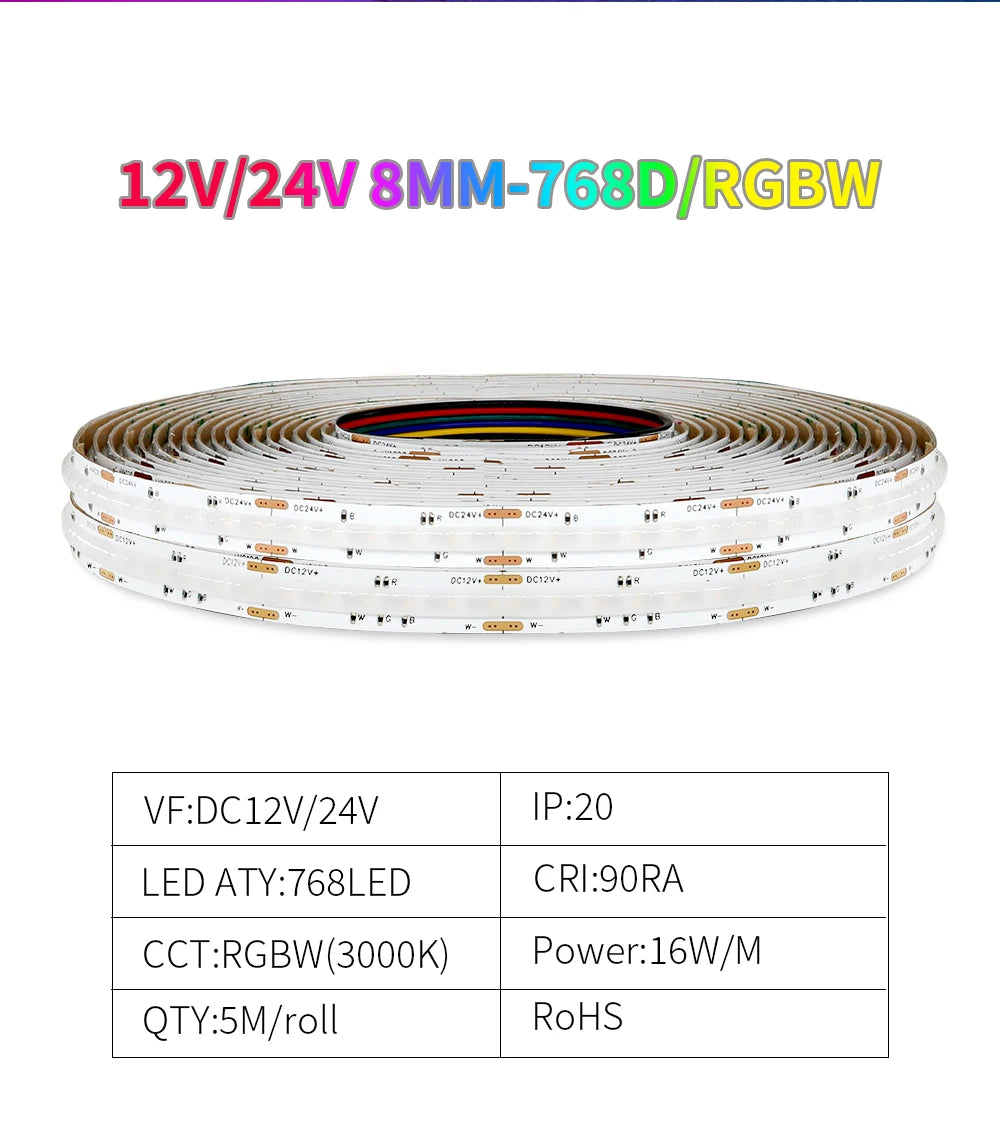

Specification:
Input Voltage: DC12V / DC24V.
Theoretical power: 16W/M.

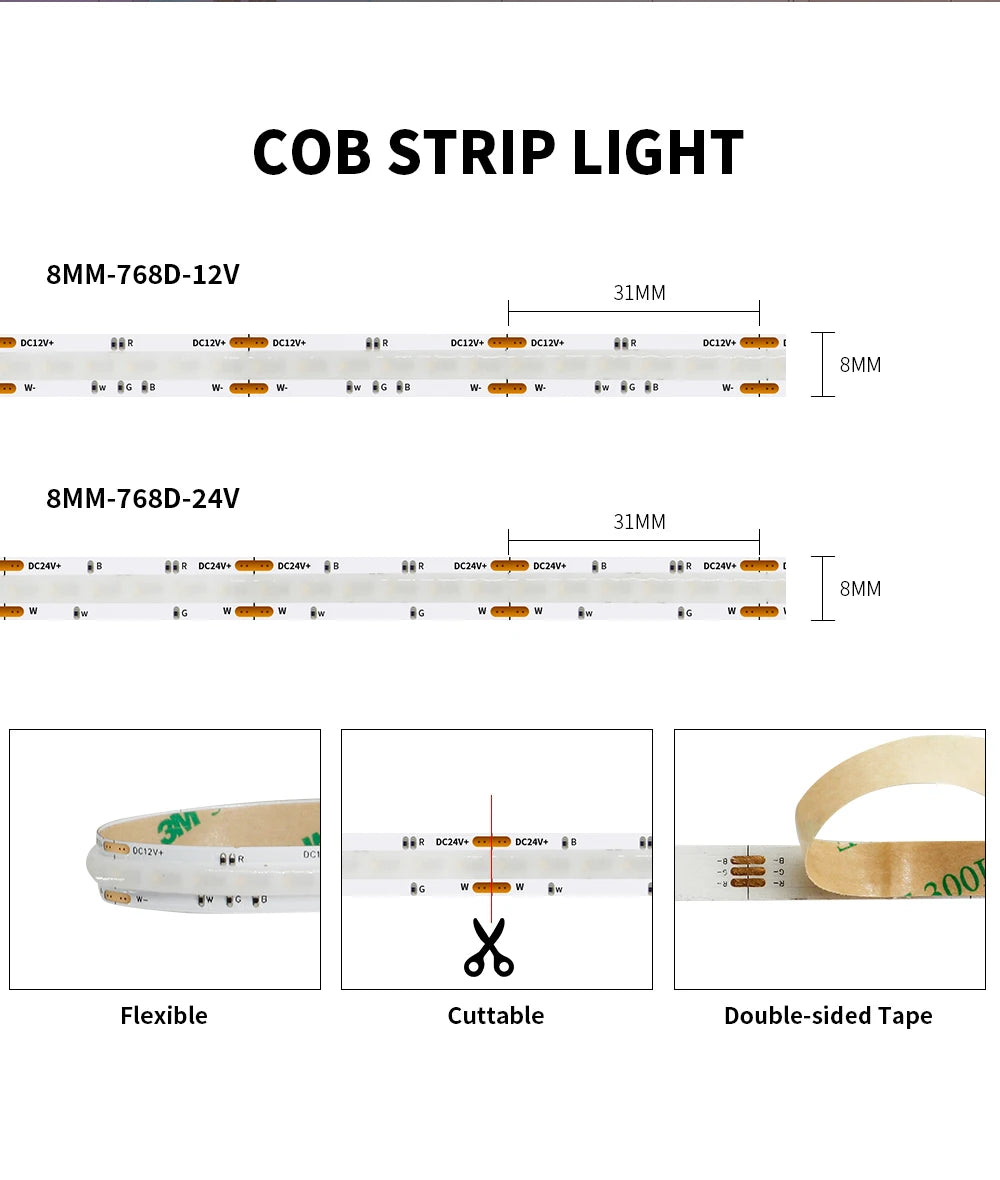

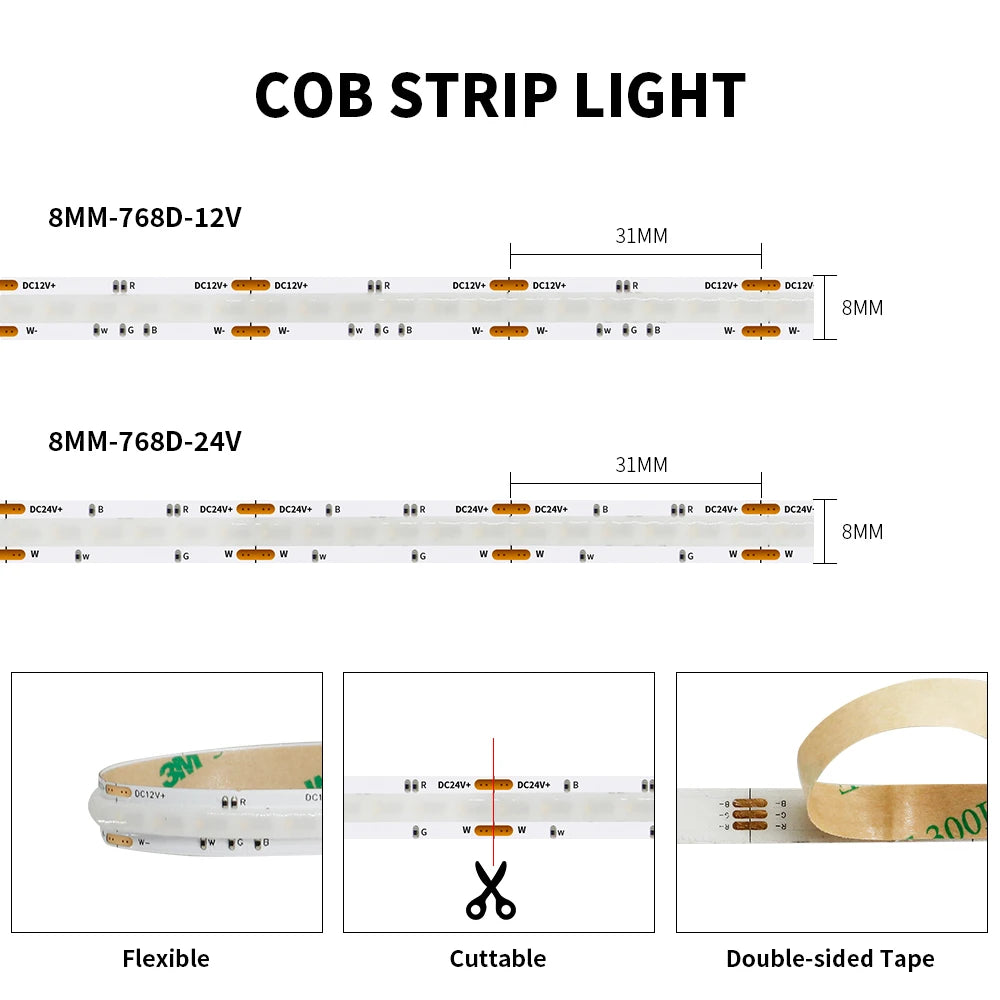

FPCB width: 8mm.
FPCB height: 1.6mm.
LED quantity: 768LEDs/M.
Cutting length: DC12V-every 31mm; DC24V-every 31mm.

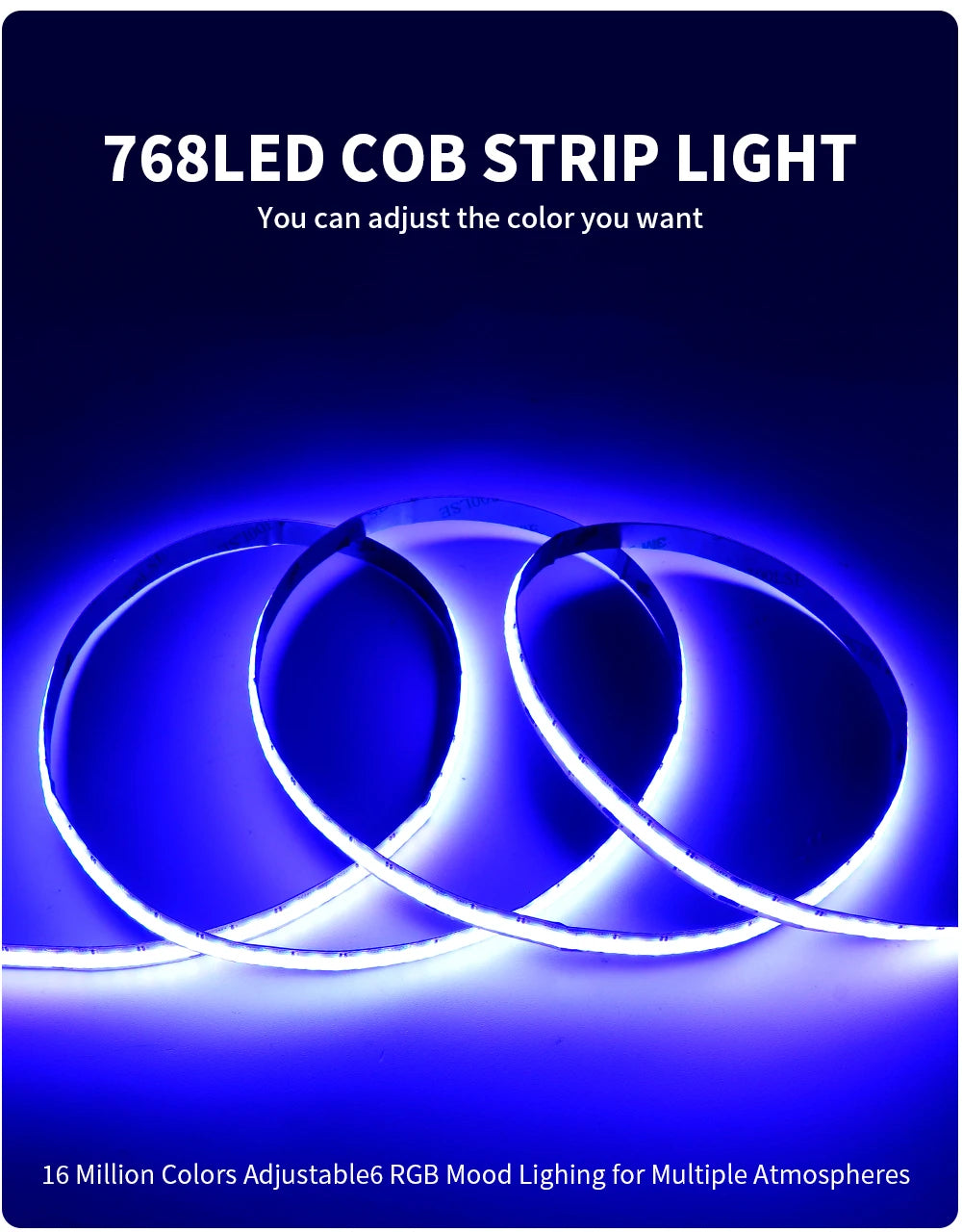

Colors: RGBW, Any Colors Changeable.
Color Rendering Index: Ra＞90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
View angle: 180°.

Package:
1 * FCOB RGBW LED strip ( power supply and controller is not included ).

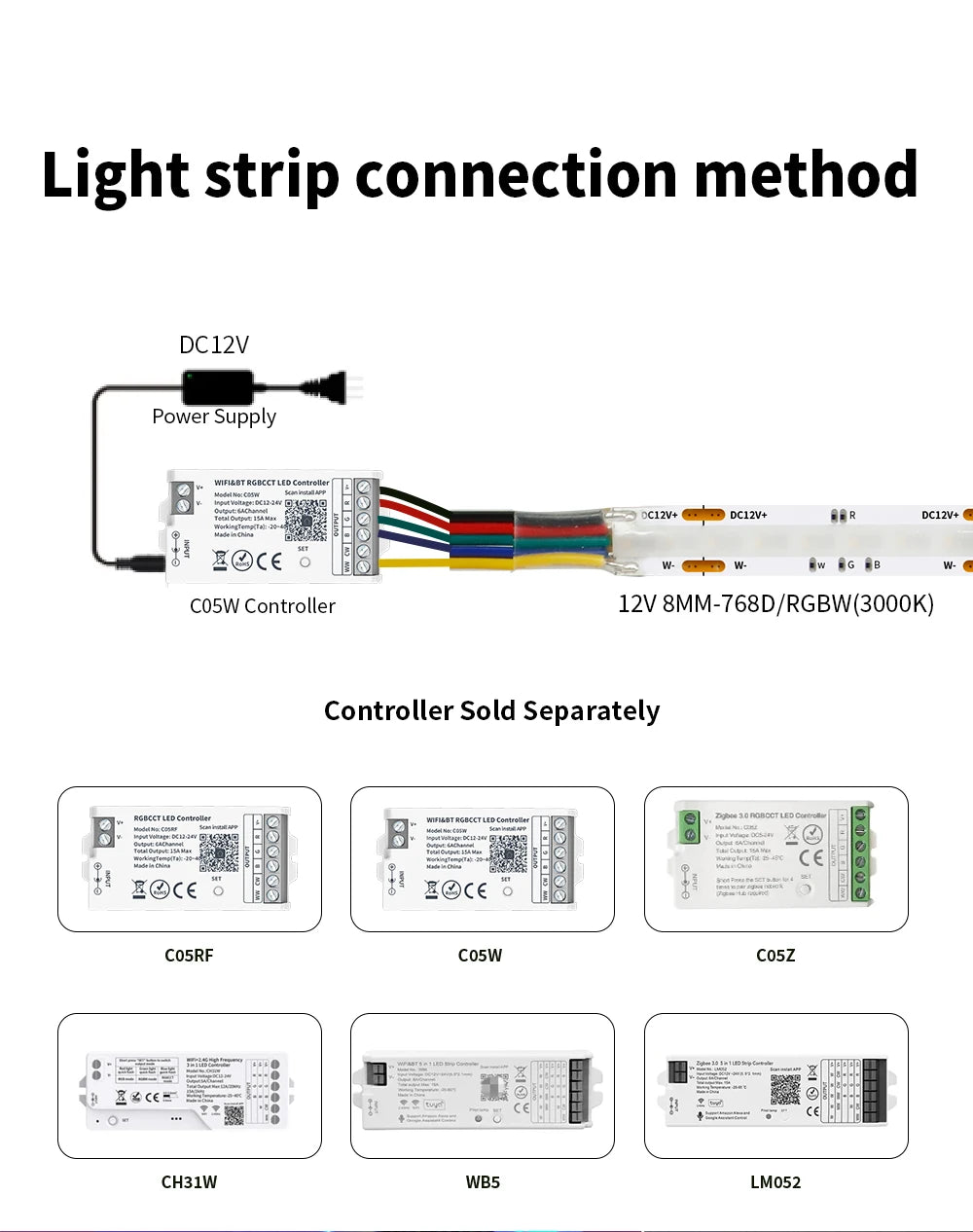

Installation Ways:
1, For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.
2, Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.

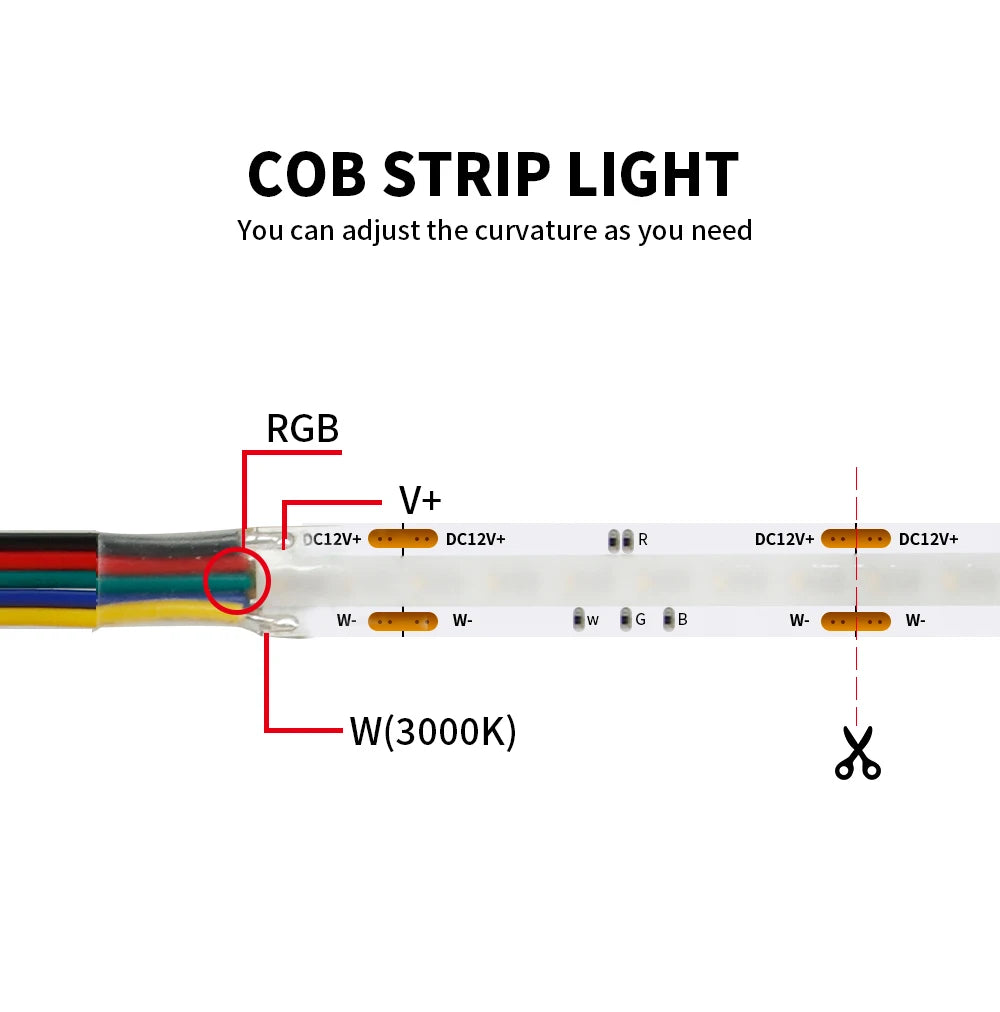

3, Match the polarities according to the marks in the PCB while connecting.
