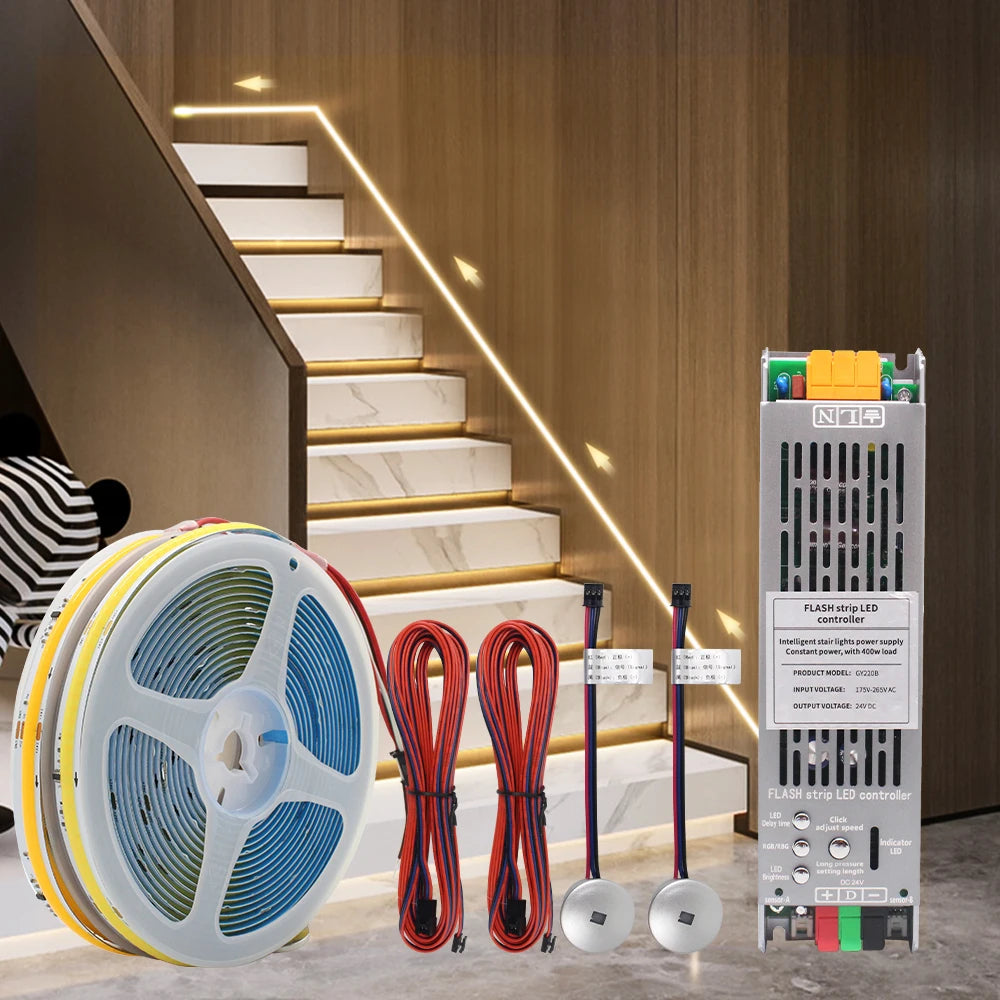

Sensor Motion Stairs LED Strip Light Kit 24V COB Water Flow

5M 10M 15M Sensor Motion Stairs LED Strip Light Kit 24V COB Water Flow Staircase Step Lighting for Interior Ladder Corridor Lamp



Average Life (hrs): 50000



Certification: CCC,ce,EMC,FCC,LVD,ROHS,CE,RoHs

Choice: yes

Color Temp(K): 6000K

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: SANAN

LED Chip Model: COB

LEDs Number/M: 360

Luminous Flux: 249-2000

Model Number: Sensor Stair Light Kit

Nominal Voltage: 24V

Occasion: Living room,Living room

Power Consumption (W/m): 11.52W/m

Power Generation: Motion

Power Source: DC

Specifications (light beads / m): 360

Strip type: COB

Voltage: 24v

Waterproof: No

15869302767941-3256807019814714

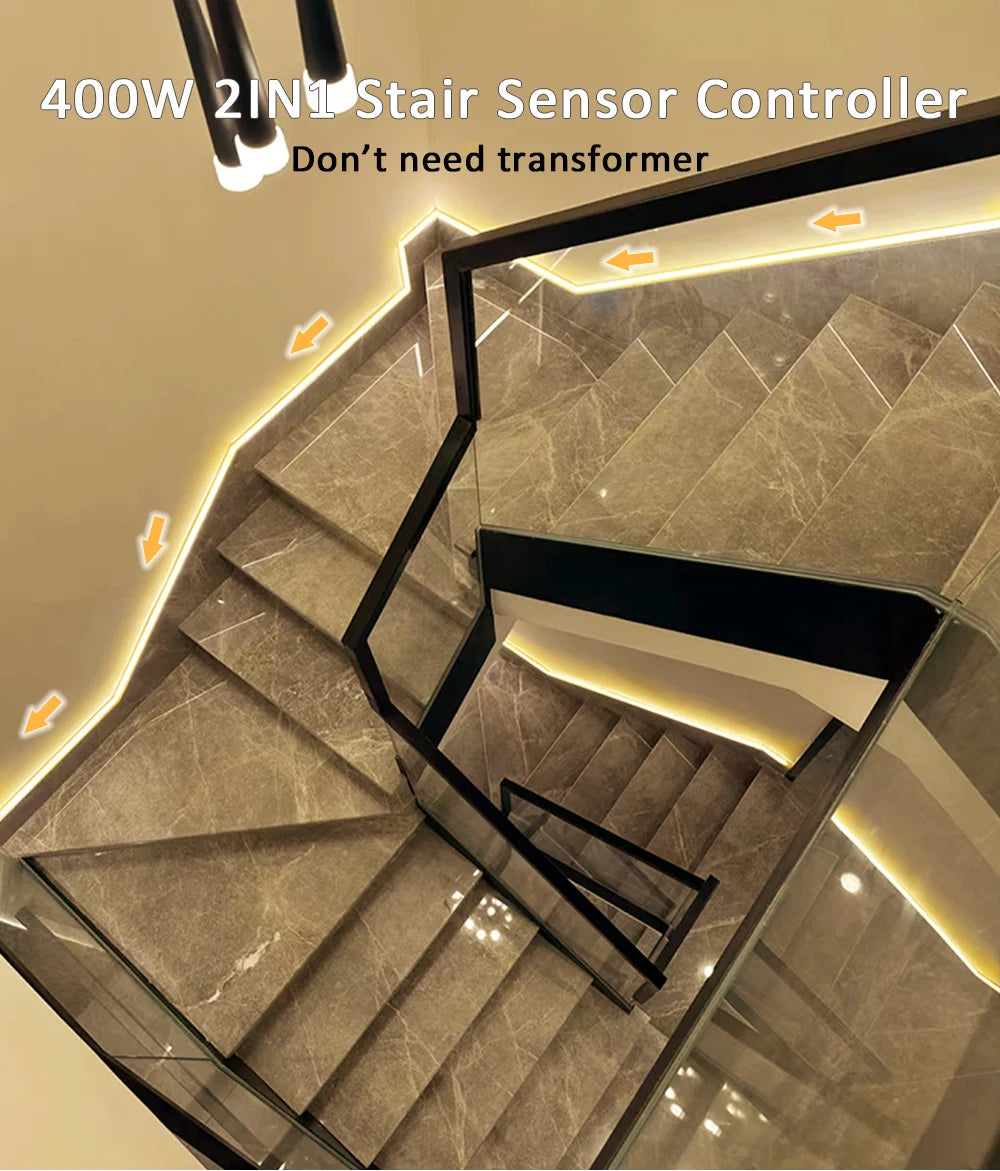

New Products: Intelligent stair light controller with motion sensor

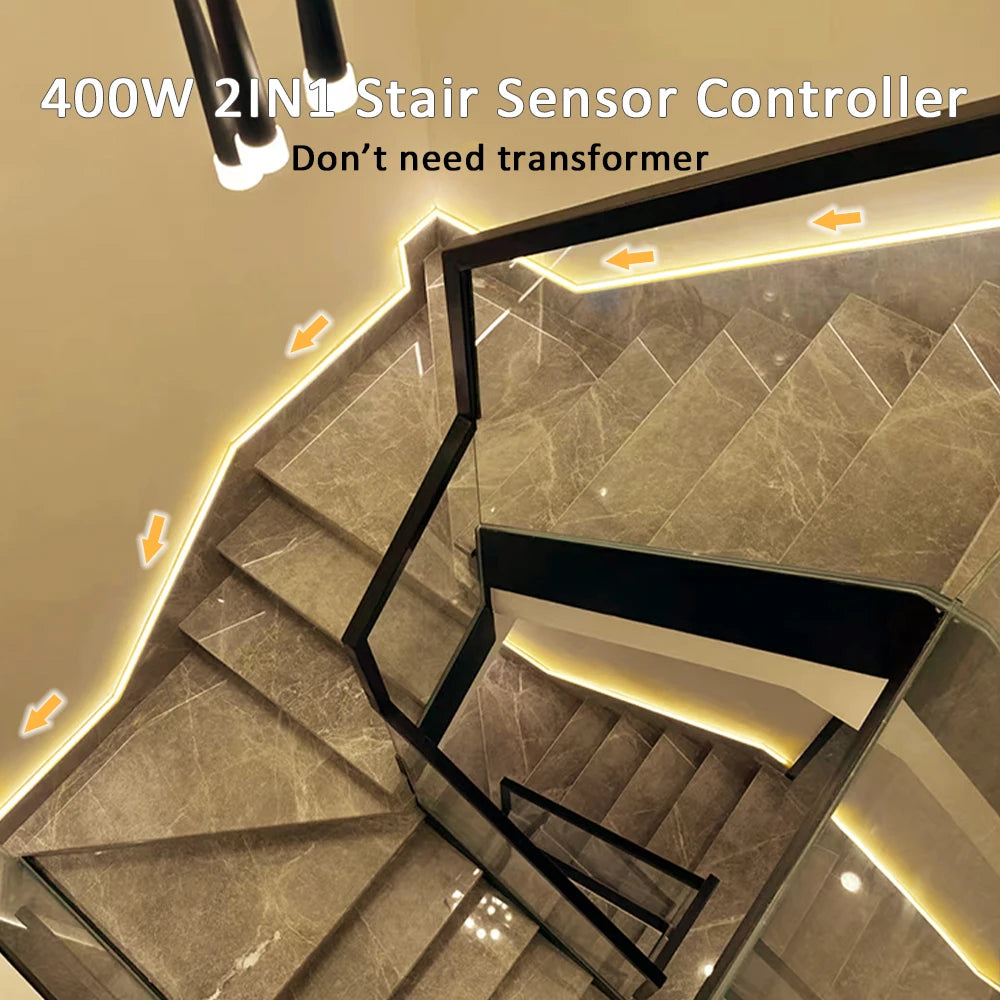

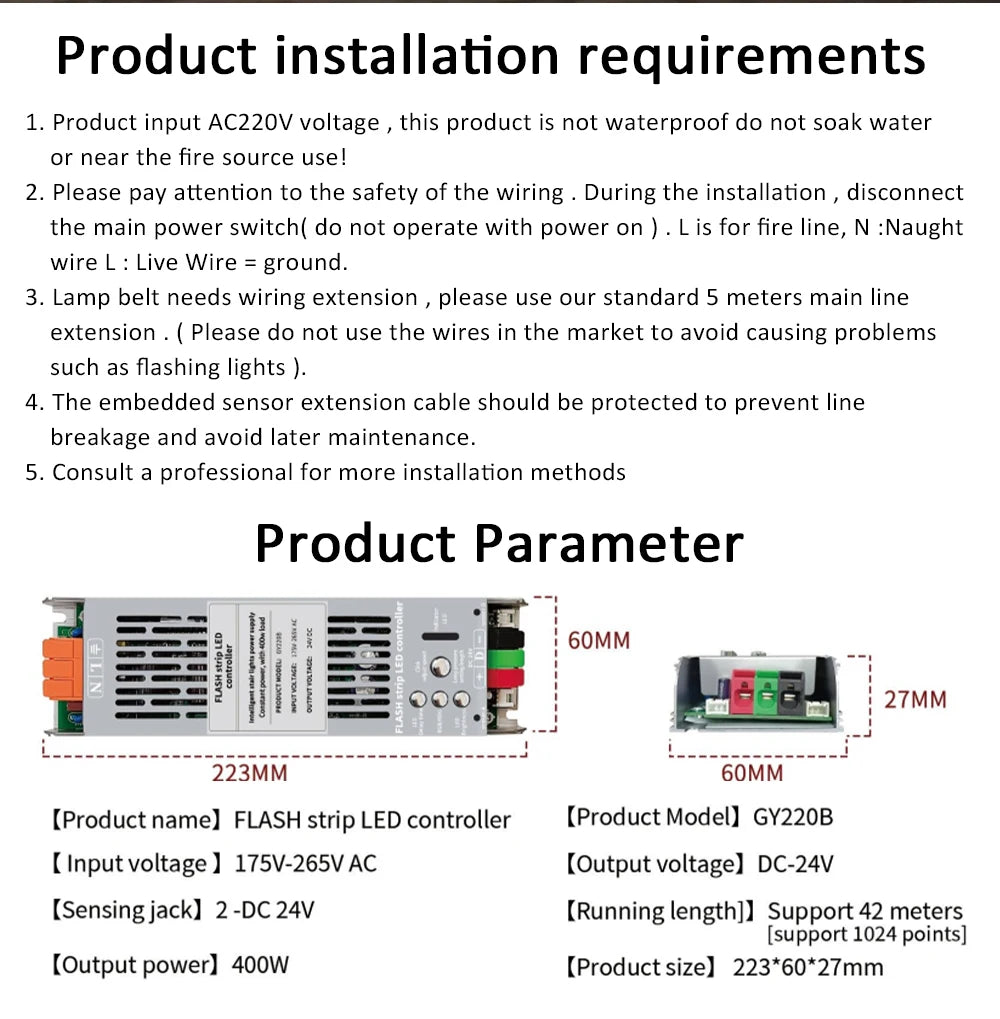

Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient.

Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working)

Output: DC 24V

Max Power: 400W

Product size: 223*60*27mm

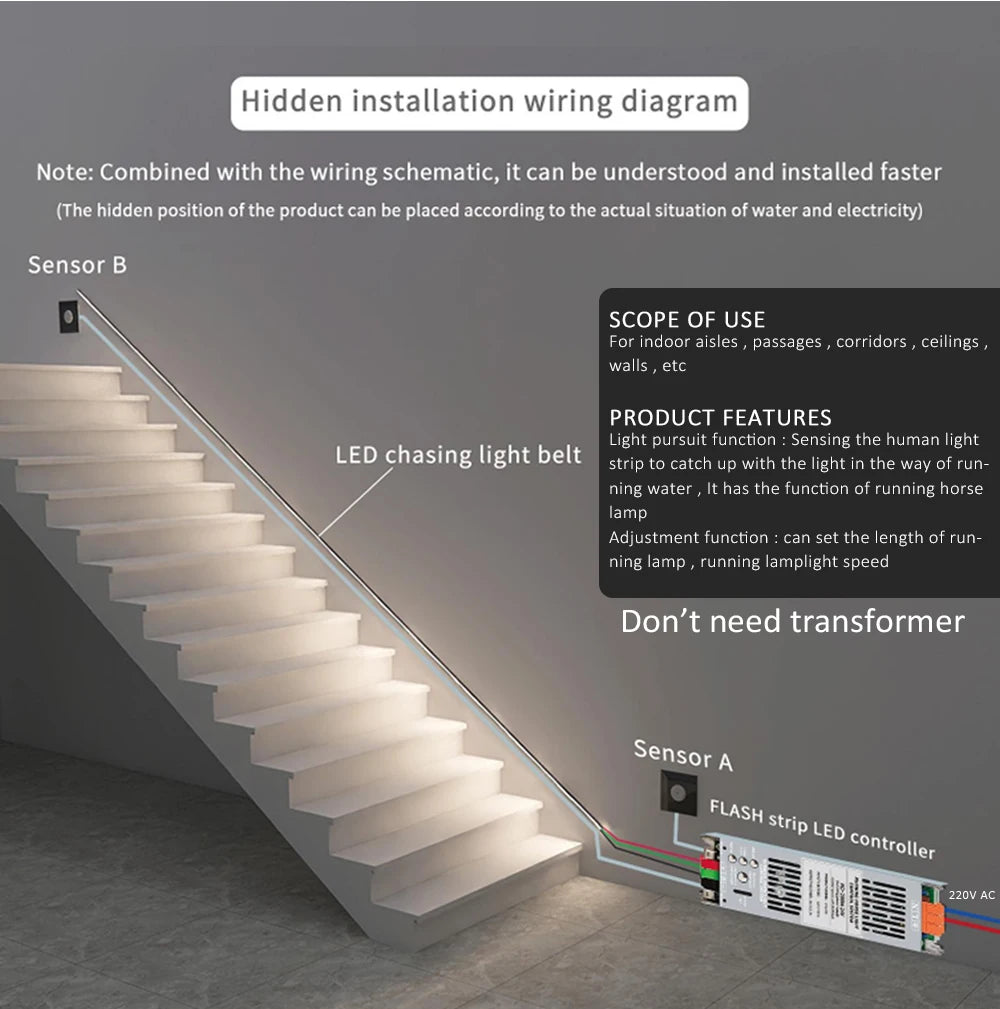

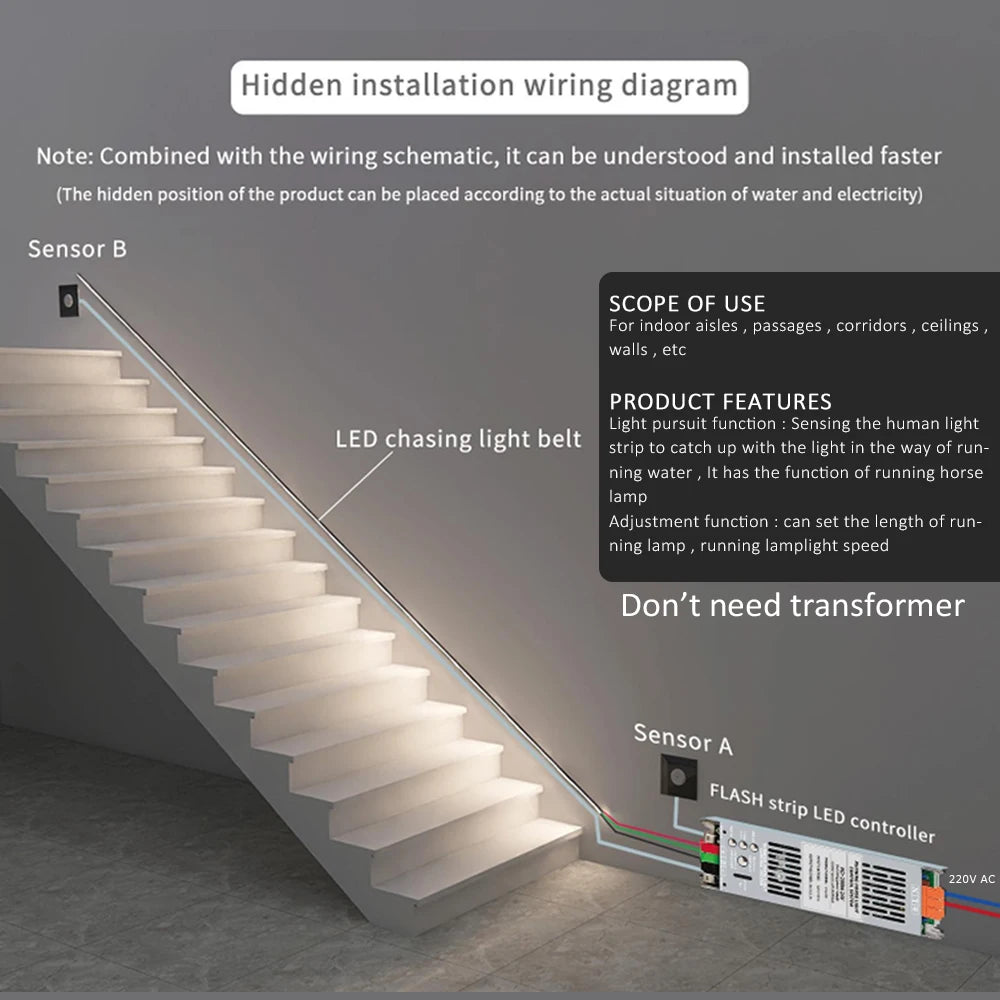

Sensor A: Used for Upstairs

Sensor B: Used for Downstairs

2pcs Extension Cable Length: 5Meters ( Sensor to controller)

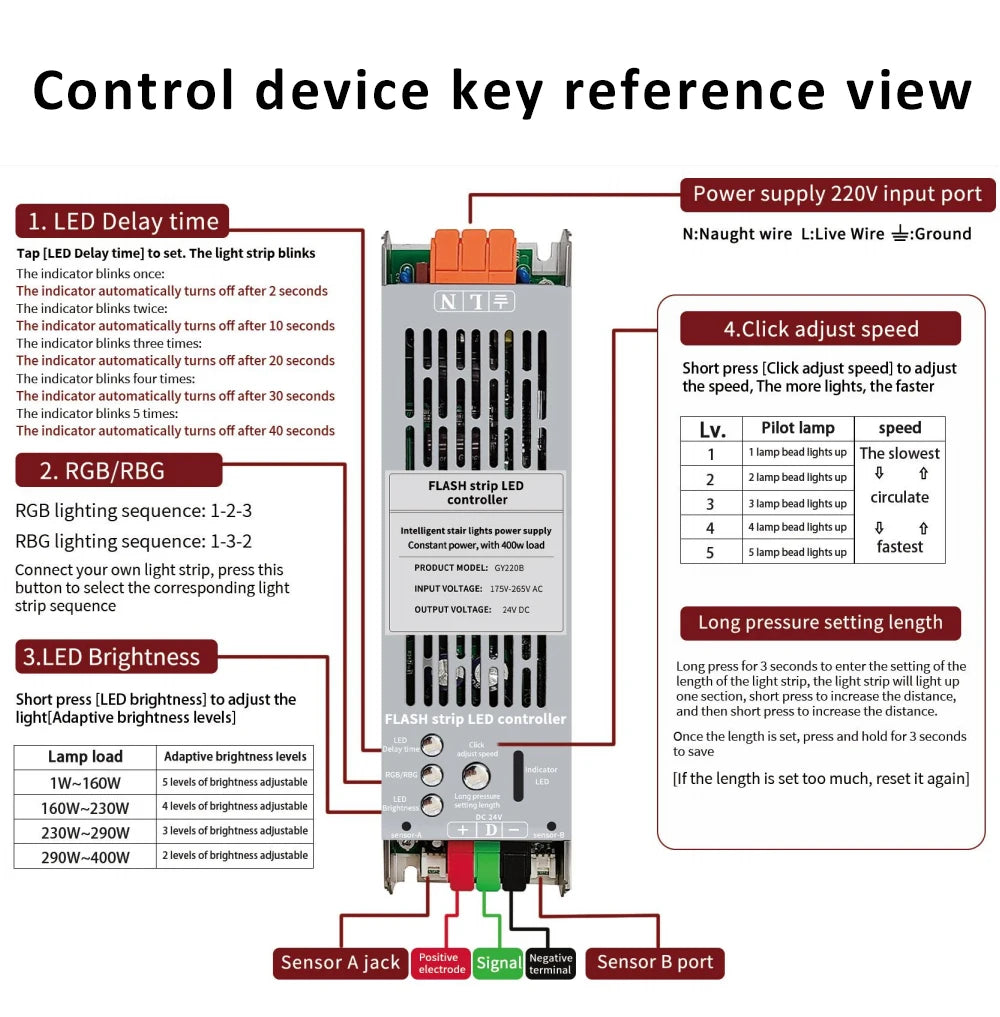

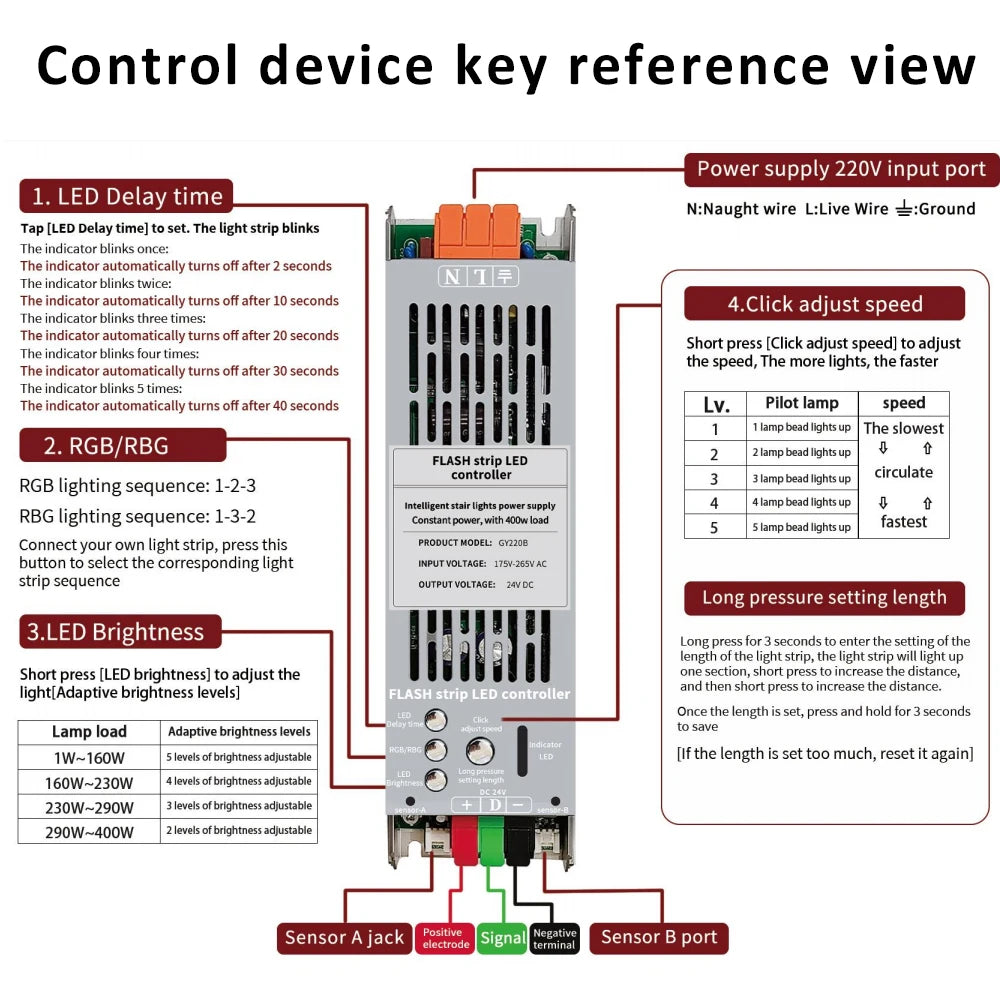

Function:

1.   Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable)

2.  Brightness & Speed is adjustable

3.  Pixel Number is adjustable, Max. up to 1024 Pixels.   Strip Length Max. up to 42 Meters.

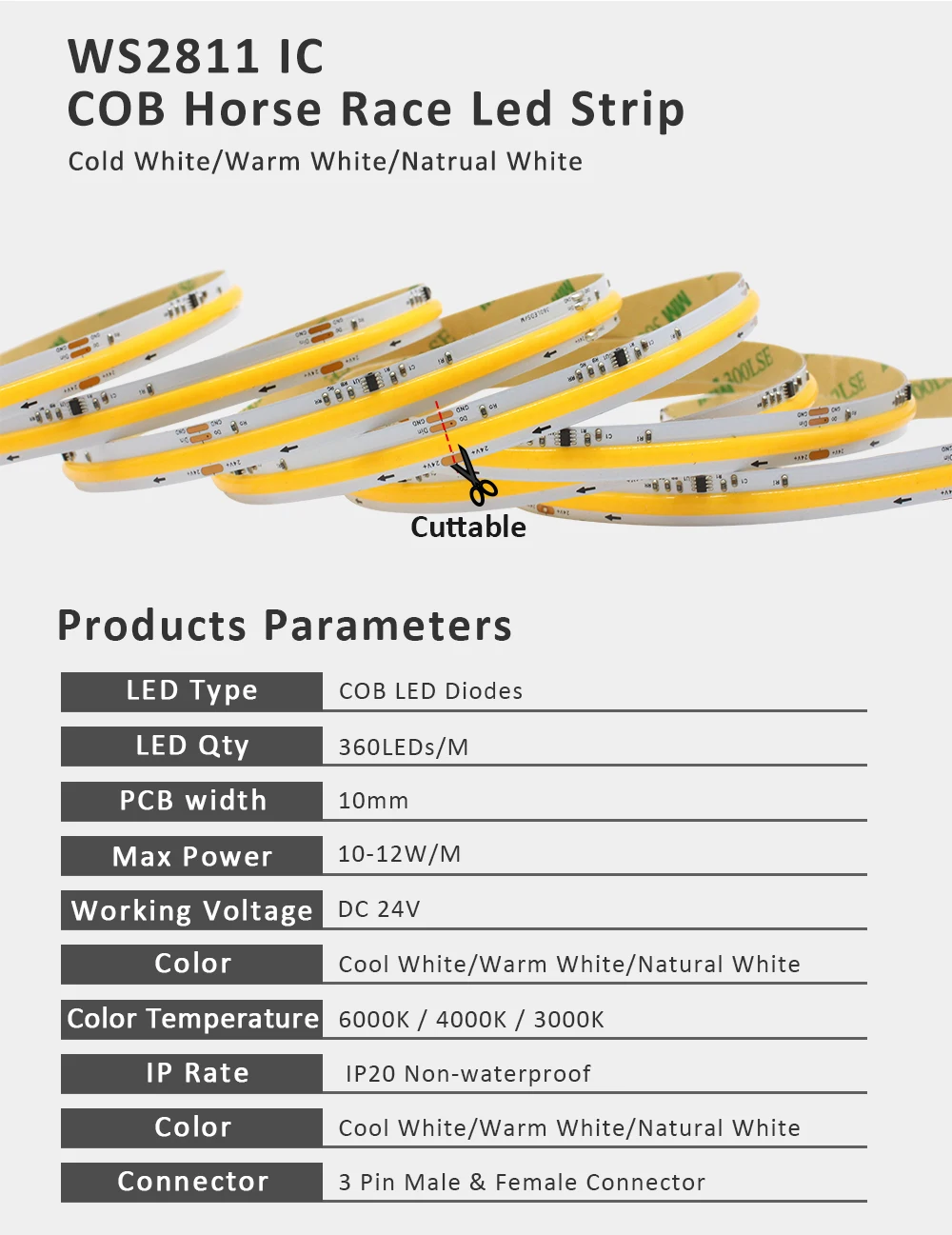

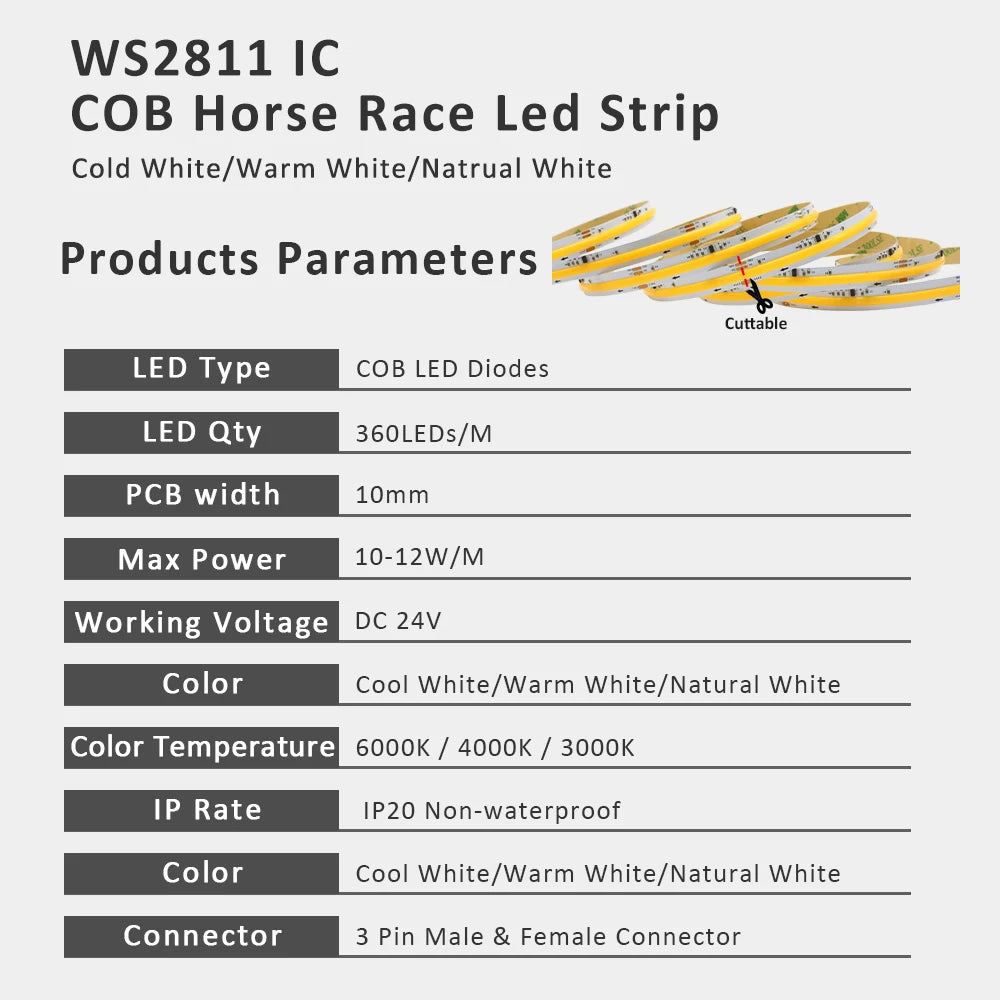

Compatiable SPI Led Strip Light:

Working Voltage: 24V

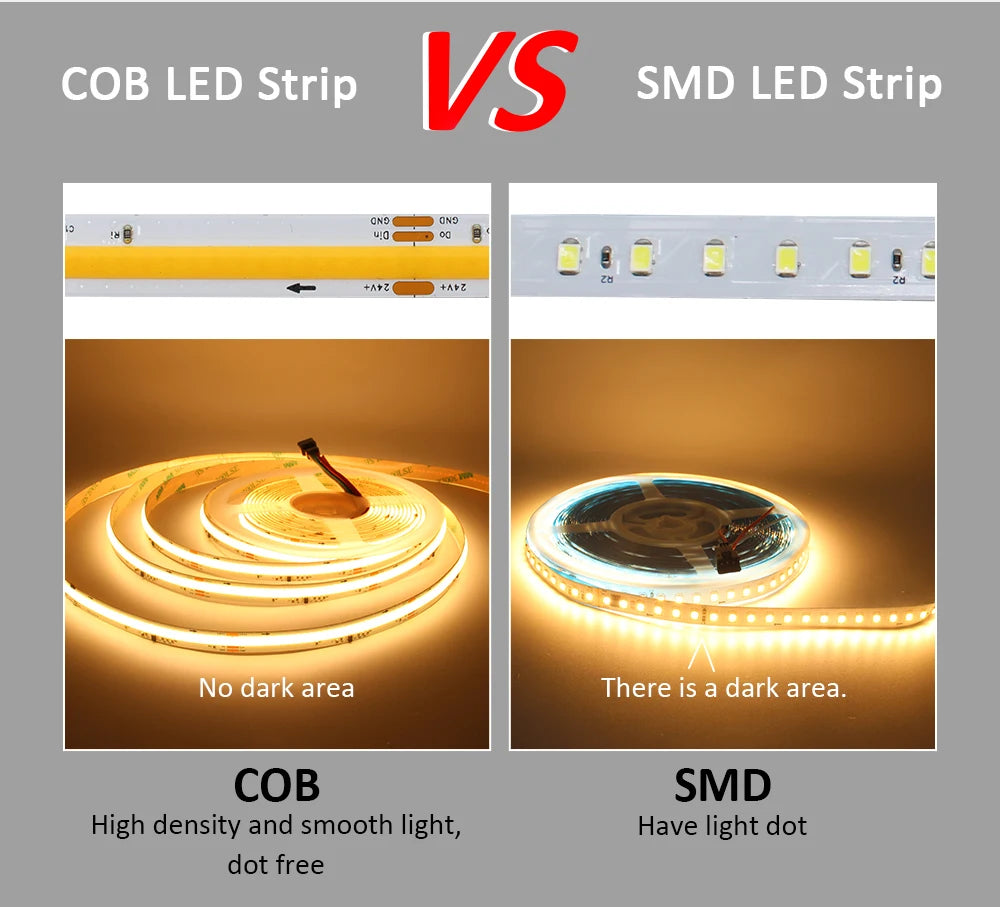

LED Type: COB

Chips Qty: 360 Chips/meter

Length: 5M/10M/15M

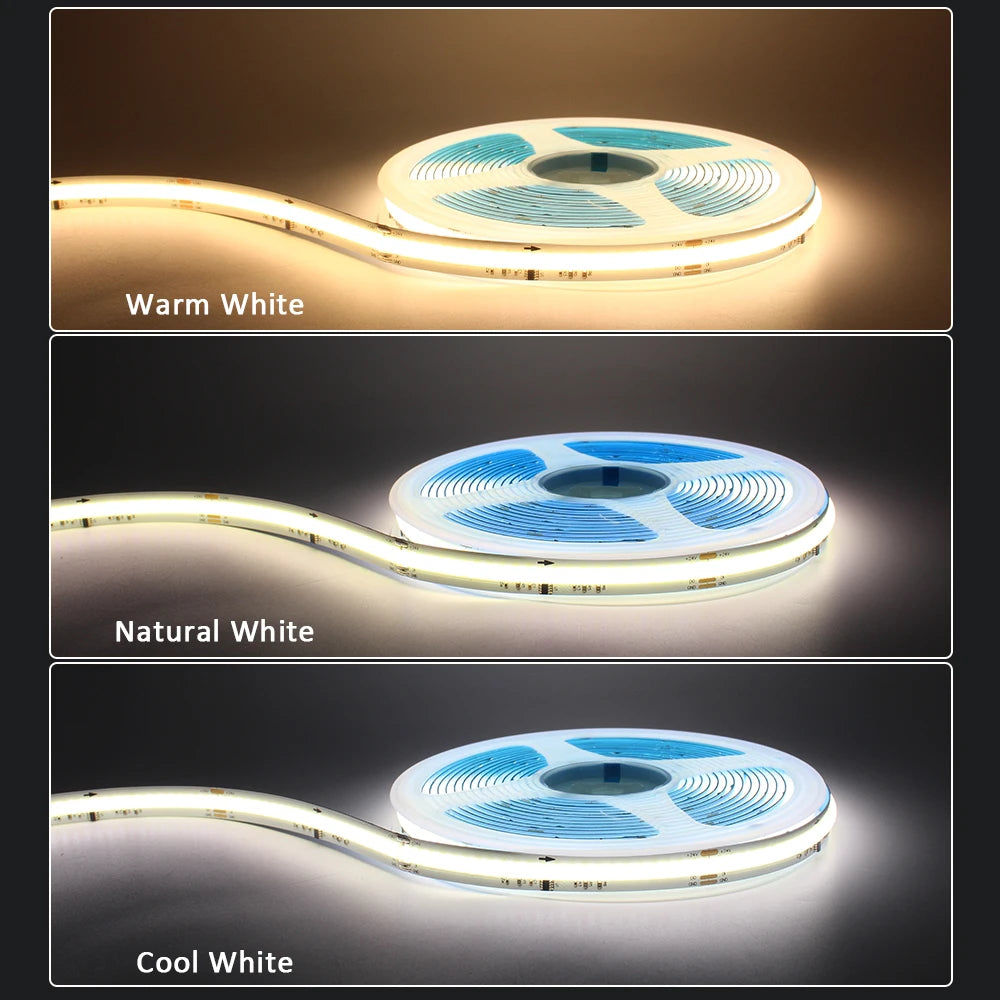

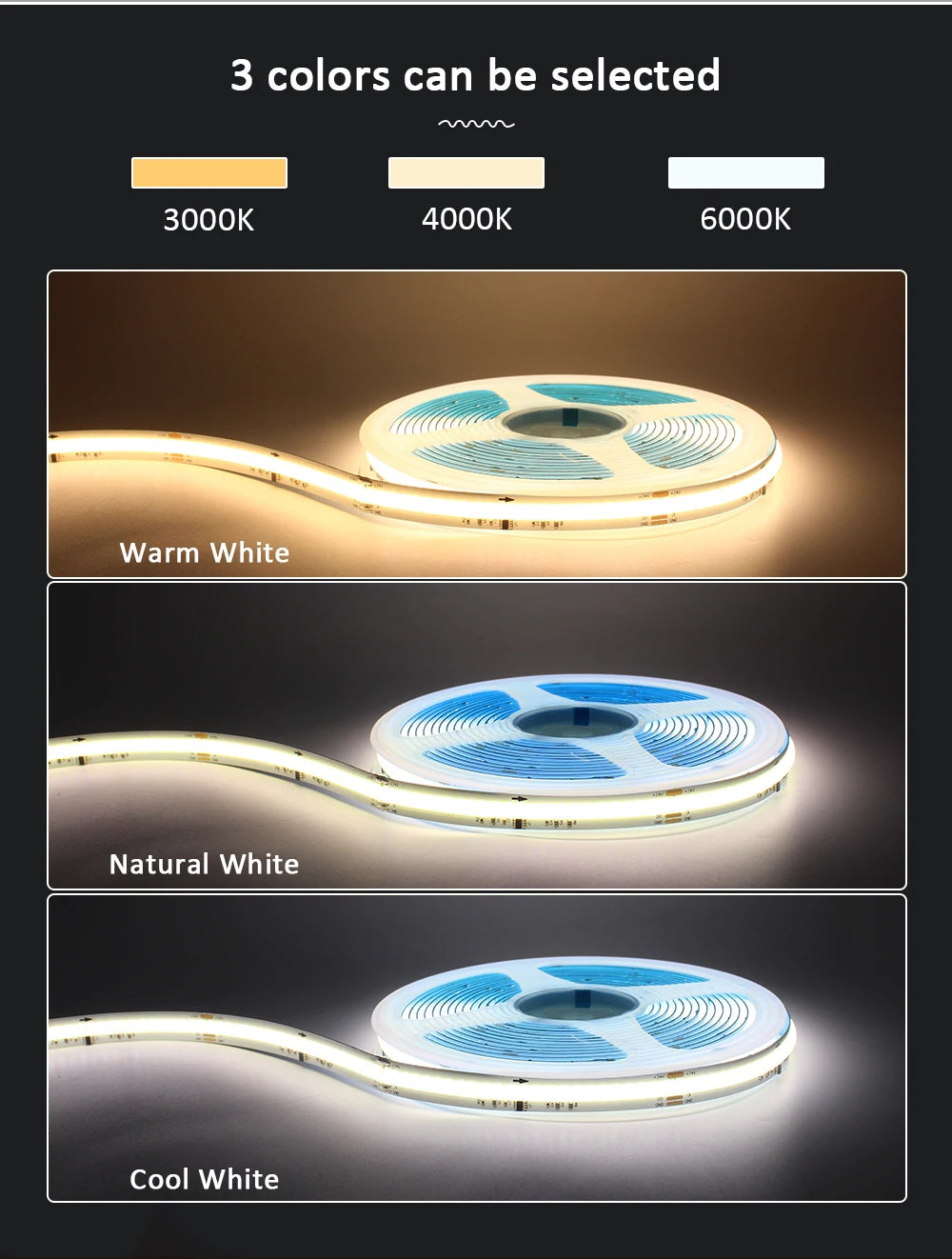

Color: Warm White 3000K, Natural White 4000K, Cool White 6000K

PCB Width: 10mm

Strip Wire:

Red Wire--- Postive +24V

Green Wire ---- GND signal wire

White Wire ---- Negative -24V

NOTE:

 You must read the User Manual for Setting when testing. IF not, Only half led strip working.  THAT IS NOT Quality Problem!!!

     Step A:  Set Pixel Number make sure all diodes are working for the whole led strip.

     Step B:  Set Strp Order through Pressing RGB/RBG button

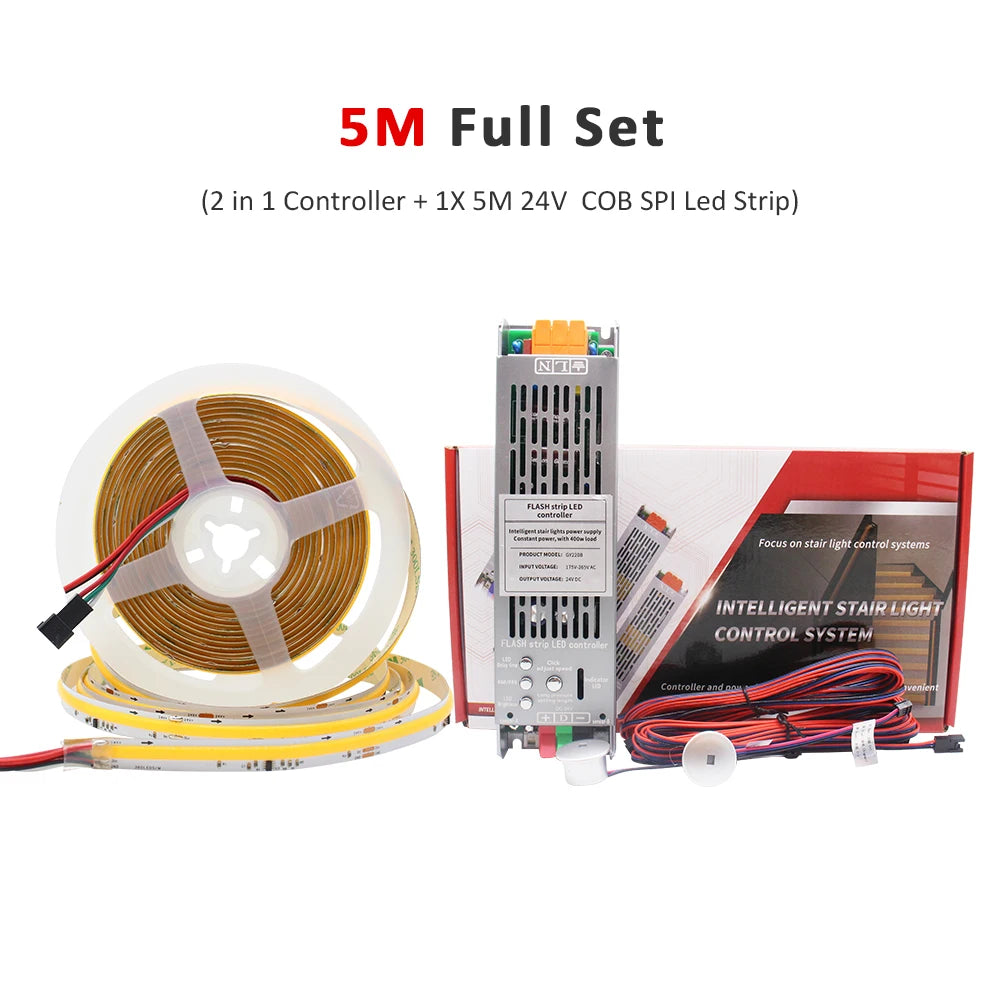

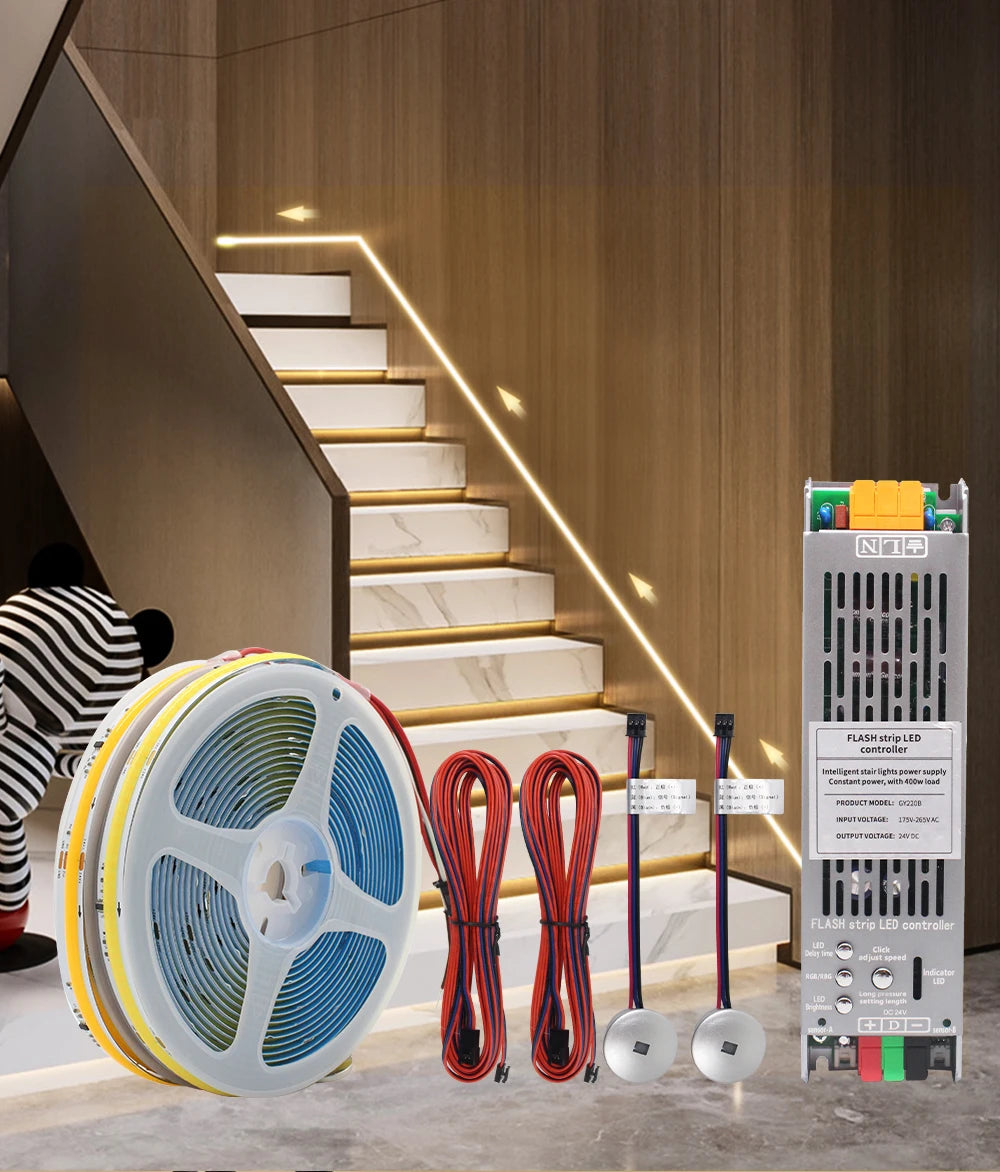

Package Including:

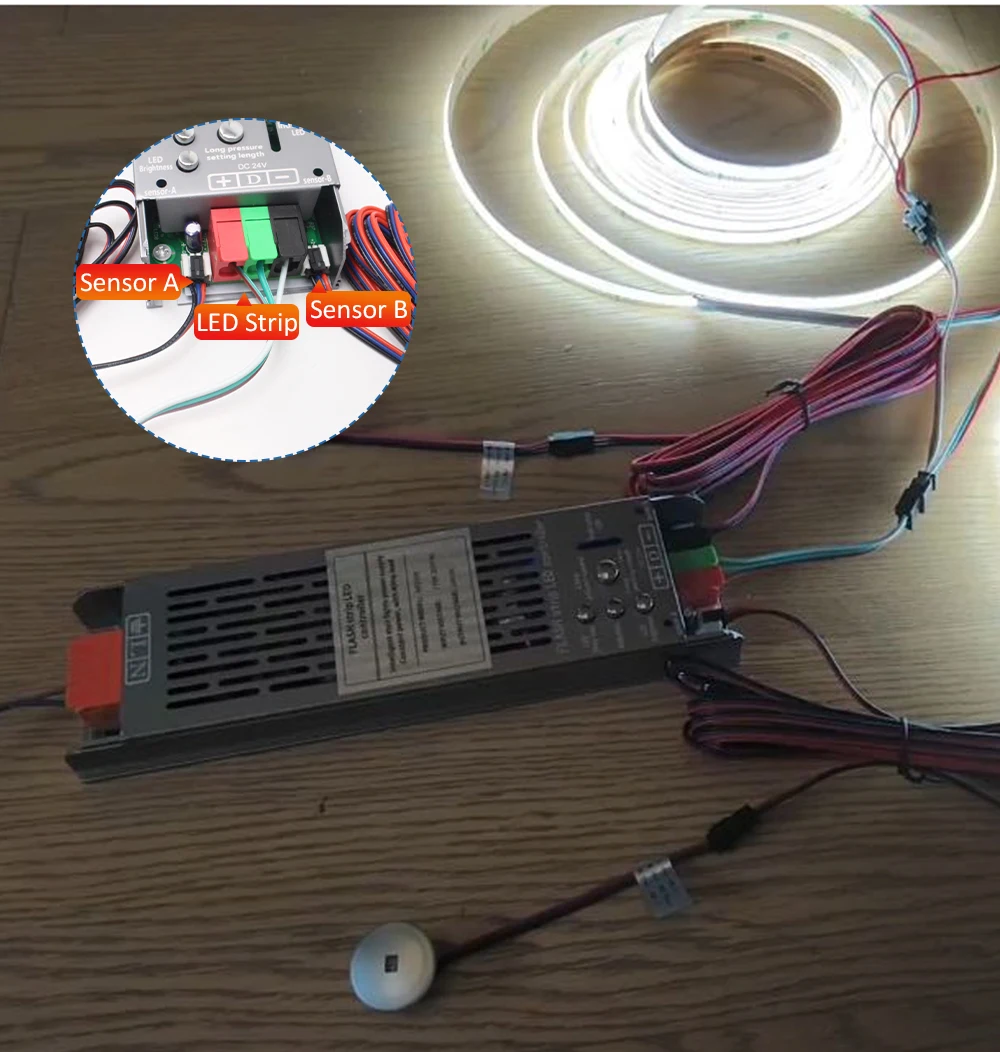

1 x 2 in 1 24V 400W Stair Light Controller with Motion Sensor

1 x 24V SPI COB Led Strip Light
